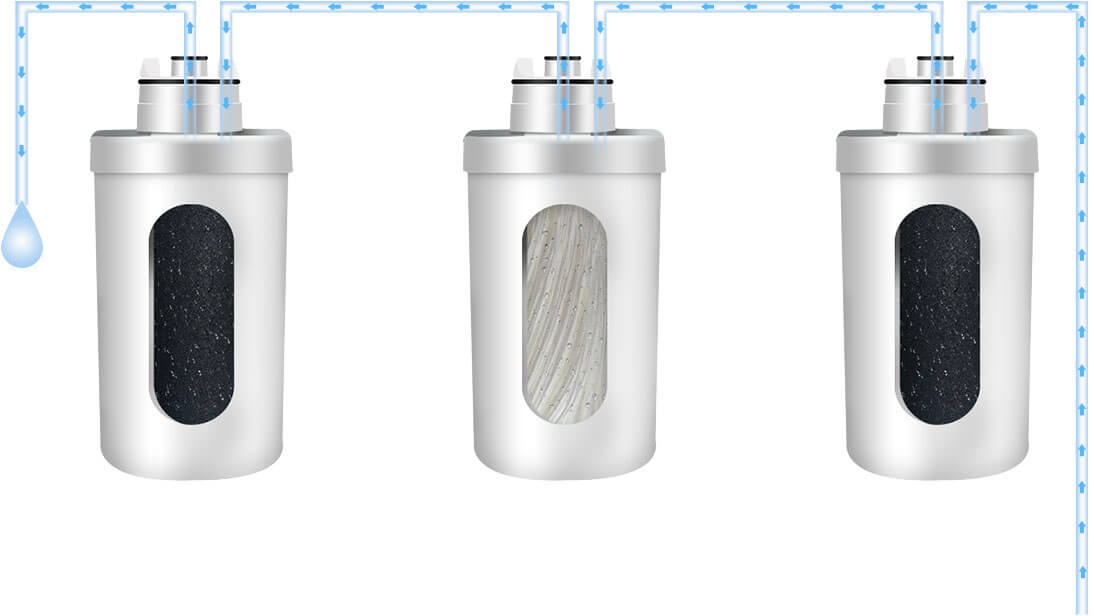

Three-Stage of Filtration technology
removes contaminants from the water

Features two carbon filters and one Ultra Filtration filter to remove chemical substances, odor, chlorine, chloramine, bacteria, spore cysts, scale, impurities, mercury, lead, HG and other contaminants from the water. In addition, the Three-Stage of Filtration improves the water taste, smell and clarity and provide you safe, high-quality and clean drinking water.

Mineral water

1First Stage of Filtration

2Second Stage of Filtration

3Third Stage of Filtration

First Stage of Filtration: Carbon Pre Filter

Carbon pre filter can reduce a lead and mercury concentration. It can filter contaminants down to 5 microns and remove volatile organic compounds and methyltert-butyl-ether from the water. It has a 300 gallon water purification capacity, that is filter life of 1140 liters.

Volatile Organic Compounds

Heavy Metals

Hg Metals

Sediments

Filter out contaminants that affect a taste of the water and human health

Second Stage of Filtration: Ultra filtration filter (KDF + Ultrafiltration membrane)

Features a hollow fiber ultra filtration membrane with scale blocking KDF (High strength of copper, zinc alloy particles). Ultra filtration membrane uses PSF which is high strength, non-toxic and without side effects. It can remove 0.1 micron contaminants , colloids, particles, asbestos fibers, bacteria, most of the viruses and water-soluble heavy metals. 200 gallon Water purification capacity, that is filter life of 7600 liters.

Microorganism

Bacteria

Scale

Virus

Healthy Water Molecules
Minerals and Trace Elements

Clean water

Tap water Bacteria, Virus, Colloid Sediment, Iron rust

0.01 micron aperture enlargement schematic

Third Stage of Filtration: Highly Effective Activated Carbon Filter

Highly Effective Activated carbon filter can filter the contaminants down to 1 micron and removes inorganic compounds and Chloramine (used for side effects of Chlorine and ammonia during water disinfection.) 300 gallon Water purification capacity, that is filter life of 1140 liters.

Odor

Residual Chlorine

Colloid

Smelliness

Sintered activated carbon has a stronger absorption capacity which is capable of filtering smaller impurities and particulates

Easy Cartridge Replacement, Patented Technology

Cartridge life is generally 1140-7600 liters. When LED indicator light turns red, it's time to replace your cartridge. After the replacement, press and hold down Reset button (3 to 5 seconds) to reset.

Pull up a cartridge (or a filter) 30 degree, gently turn counterclockwise, pull out a cartridge.
Push in a cartridge, gently turn clockwise, push down a cartridge

Patent No. ZL 2015 3 0233920.3

Filter Replacement Steps

Shut off water valve and drain off water
Take off screws in the back
Gently push the right-hand side panel to open
Gently push the right-hand side panel to open
Replace with new cartridge(s) and push in then gently turn clockwise finally push it down.
Finish with press and hold "Reset" button

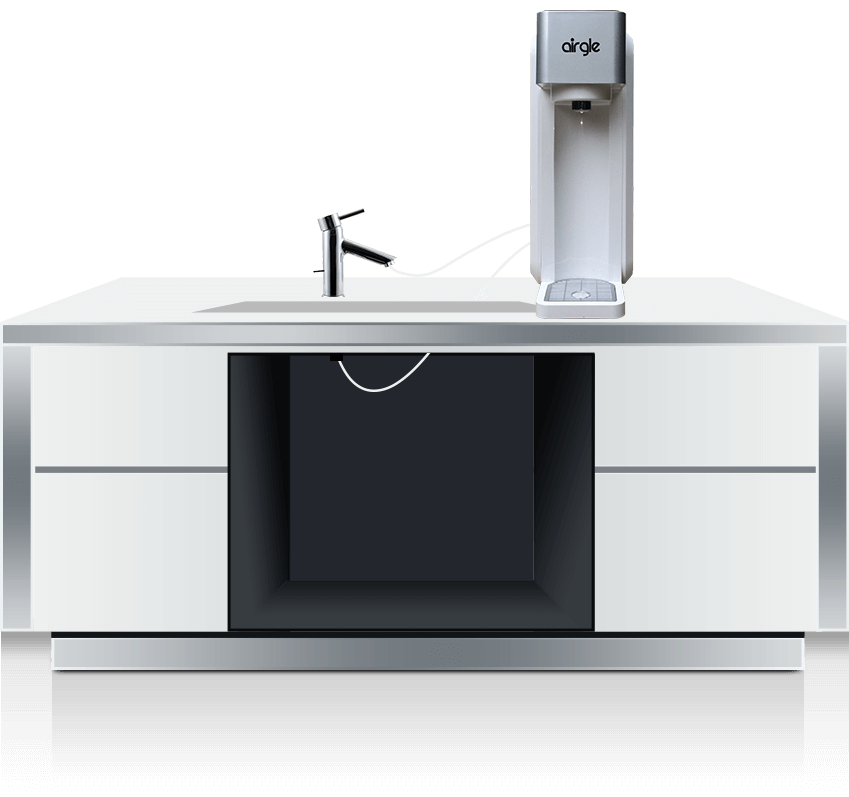

Easy to install, easy to get it done

Airgle imported counter-top water purifier is committed to bring you carefully designed product for restoring your quality of life.

Method one: connects to the faucet

Click for details >>

Method two: connects to the connector of valve adapter.

Click for details >>

Airgle WG500 Cartridge or Filter Combination

Let the spring of life be more healthy and cleaner.

¥525.00

Add to Cart

¥900.00

Add to Cart

¥425.00

Add to Cart

Installation Overview

Before you begin, close the water supply valve that feeds cold water to your tap.Then, open the faucet to drain the sink's cold water pipe.

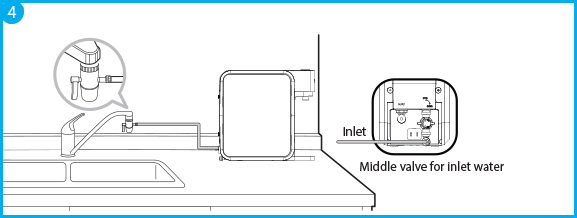

Method 1:Faucet Mounting Installation

1. Unscrew to remove the aerator (wire screen) and washer from the end of the faucet.

2. Position the diverter valve onto the faucet and hand-tighten the textured collar counterclockwise until secured.

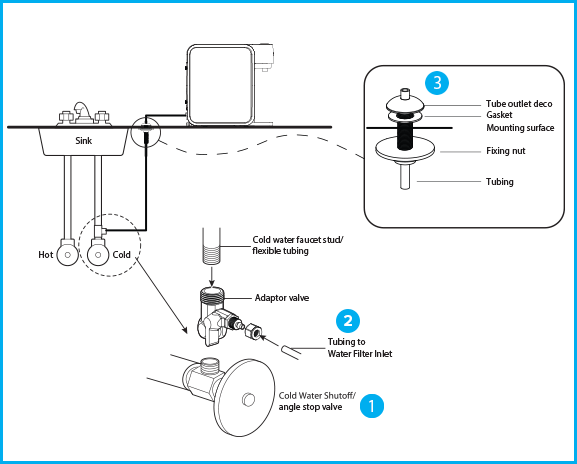

Method 2:Tube Outlet Deco Mounting Installation

1. Unscrew to remove the textured nuts.

2. With the threads facing out, push the nuts onto the tubes.

3. Firmly push the tubes onto the barbs.

4. Screw the nuts onto the barbs and hand-tighten.

You are now ready to turn the water main back on. As the system fills, check for leaks and make sure that everything is properly connected. To flush the system, run the water for about 2 minutes. Initially, you may notice some carbon dust in the water. This is normal and harmless. After flushing the system, you should be able to check the clarity of the water in a clear glass.

Installation Overview

Before you begin, close the water supply valve that feeds cold water to your tap.Then, open the faucet to drain the sink-'s cold water pipe.

Tube Outlet Deco Mounting Installation

1. Insert base cover and gasket onto mounting bolt on faucet.

2. Insert mounting bolt through the drilled hole in the fixture.

3. Place washer and lock washer and fixing nut onto the mounting bolt. Position
tube outlet deco on fixture, then tighten nut securely.Insert standard tube insert
